[Linux][PVE]单IP分配NAT开小鸡，并将小鸡端口转发到公网ip的端口上[Linux][PVE]单IP 分配NAT开小鸡

CPU:Intel Xeon E3-1231v3 - 4c/8t - 3.4 GHz/3.8 GHz
RAM:32 GB 1333 MHz
NETWORK:100 Mbps incoming  1000 Mbps outgoing

从头演示如何在pve中nat小鸡自动获取ip地址，并且将nat小鸡中的端口映射到母鸡ip，使用母鸡ip加小鸡端口访问小鸡服务

准备环境

1. 一台配置较好的独立服务器
2. 勤劳的小手

步骤

配置nat小鸡自动获取ip地址

首先先更新一下系统组件

apt update && apt upgrade

编辑/etc/network/interface文件后保存

nano /etc/network/interfaces

auto lo
iface lo inet loopback
iface eno1 inet manual
auto vmbr0
iface vmbr0 inet static
        address 149.202.**.**/24
        gateway 149.202.**.**
        bridge-ports eno1
        bridge-stp off
        bridge-fd 0
        hwaddress 00:1E:67:FA:**:**
iface vmbr0 inet6 static
        address 2001:41d0:**:**::1/128
        gateway 2001:41d0:**:**:ff:ff:ff:ff
# 添加网卡vmbr1
auto vmbr1
iface vmbr1 inet static
address 192.168.100.1
netmask 255.255.255.0
bridge_ports none
bridge_stp off
bridge_fd 0
post-up echo 1 > /proc/sys/net/ipv4/ip_forward
post-up echo 1 > /proc/sys/net/ipv4/conf/vmbr1/proxy_arp
post-up   iptables -t nat -A POSTROUTING -s '192.168.100.0/24' -o vmbr0 -j MASQUERADE
post-down iptables -t nat -D POSTROUTING -s '192.168.100.0/24' -o vmbr0 -j MASQUERADE

重启网络服务使其生效

systemctl restart networking

安装dhcp服务(安装默认无法启动，需要配置后方能启动)

apt-get install isc-dhcp-server

配置dhcp服务

nano /etc/default/isc-dhcp-server

INTERFACESv4="vmbr1"
INTERFACESv6=""

nano /etc/dhcp/dhcpd.conf

option domain-name "ks2.topwuan.tech";
option domain-name-servers 8.8.8.8, 8.8.4.4;
default-lease-time 600;
max-lease-time 7200;
subnet 192.168.100.0 netmask 255.255.255.0 {
    range 192.168.100.5 192.168.100.230;
    option subnet-mask 255.255.255.0;
    option domain-name-servers 8.8.8.8, 8.8.4.4;
    option domain-name "ks2.topwuan.tech";
    option routers 192.168.100.1;
    option netbios-name-servers 192.168.100.1;
    option netbios-node-type 8;
    get-lease-hostnames true;
    use-host-decl-names true;
    default-lease-time 600;
    max-lease-time 7200;
    interface vmbr1;
}

重启dhcp服务并检查服务是否正常

systemctl restart isc-dhcp-server

systemctl status isc-dhcp-server

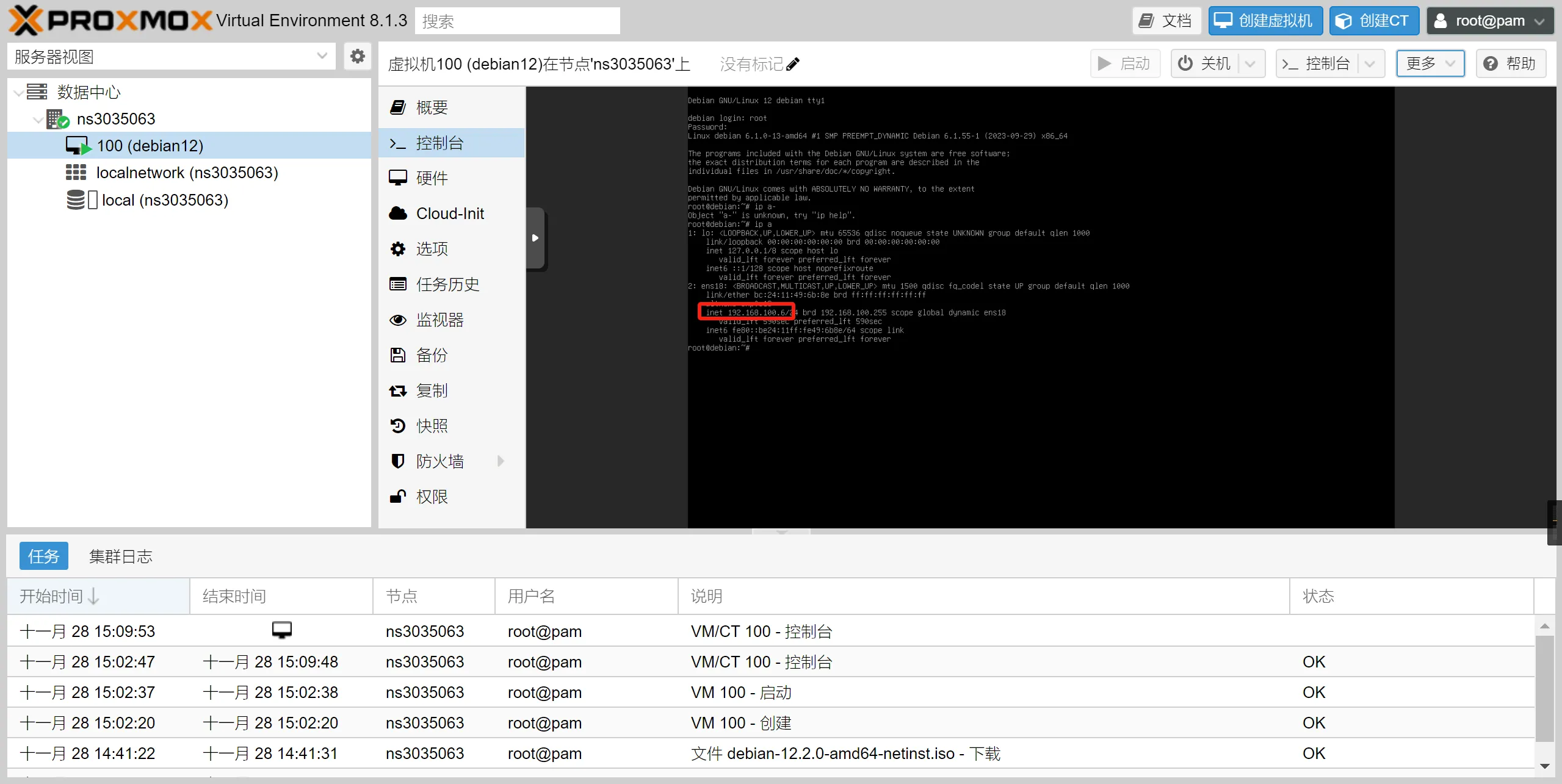

在创建小鸡时网络接口选择vmbr1，进入系统输入ip a查看ip信息发现已经自动获取到dhcp分配的ip了

使用rinetd实现nat端口转发

安装rinetd

apt install rinetd

配置端口转发

nano /etc/rinetd.conf

logfile /var/log/rinetd.log
0.0.0.0 2322 192.168.100.6 22 #将192.168.100.6的22端口映射到母鸡的2322，0.0.0.0表示母鸡绑定的所有IP，这里可以直接填公网IP

重启rinetd,接下来就可以使用公网ip加转发的端口访问小鸡的服务了

systemctl restart rinetd
